Double Acting High Tonnage Hydraulic Cylinder Jack

Double acting, hydraulic return, improve the lifting speed
Built-in safety valve prevents damage in case of over-pressurization.
Baked enamel finish and plated pistons provide superior corrosion resistance.
Plunger wiper reduces contamination, extending cylinder life.
3/8 "- 18NPT coupler and dust cap included on all models.

  • KS-CLRG

  • KASHON

Quantity:
Inquire Add to Basket

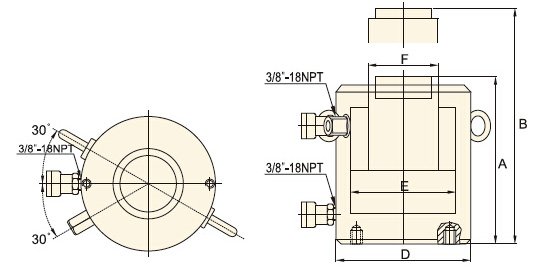

CLRG series
Model Capacity Max. Working Pressure Stroke Effective Area Oil Capacity (cm3) Closed Height
A		 Outside Diameter
D		 Plunger Diameter
E		 Weight
(T) (bar) (mm) (cm2) push pull (mm) (mm) (mm) (kg)
KS-CLRG-502 50 700 50 76.1 380 189 166 130 70 15
KS-CLRG-504 100 76.1 761 378 216 130 70 19
KS-CLRG-506 150 76.1 1141 566 266 130 70 23
KS-CLRG-508 200 76.1 1522 755 316 130 70 27
KS-CLRG-5010 250 76.1 1902 944 366 130 70 31
KS-CLRG-5012 300 76.1 2283 1133 416 130 70 35
KS-CLRG-1002 100 50 133 665 309 183 165 95 28
KS-CLRG-1004 100 133 1331 618 233 165 95 34
KS-CLRG-1006 150 133 1996 928 283 165 95 40
KS-CLRG-1008 200 133 2662 1237 333 165 95 46
KS-CLRG-10010 250 133 3327 1546 383 165 95 53
KS-CLRG-10012 300 133 3993 1855 433 165 95 59
KS-CLRG-1502 150 50 198 990 477 200 205 114 47
KS-CLRG-1504 100 198 1979 953 250 205 114 57
KS-CLRG-1506 150 198 2969 1430 300 205 114 67
KS-CLRG-1508 200 198 3959 1906 350 205 114 76
KS-CLRG-15010 250 198 4948 2383 400 205 114 86
KS-CLRG-15012 300 198 5938 2860 450 205 114 95
KS-CLRG-2002 200 50 266 1332 633 218 235 133 69
KS-CLRG-2006 150 266 3995 1900 318 235 133 94
KS-CLRG-20012 300 266 7990 3800 468 235 133 131
KS-CLRG-2502 250 50 366 1830 760 275 275 165 120
KS-CLRG-2506 150 366 5491 2280 375 275 165 156
KS-CLRG-25012 300 366 10983 4560 525 275 165 210
KS-CLRG-3002 300 50 457 2287 1132 322 310 171 179
KS-CLRG-3006 150 457 6860 3397 422 310 171 223
KS-CLRG-30012 300 457 13719 6793 572 310 171 287
KS-CLRG-4002 400 50 613 3066 1640 374 365 190 290
KS-CLRG-4006 150 613 9197 4921 474 365 190 349
KS-CLRG-40012 300 613 18393 9843 624 365 190 437
KS-CLRG-5002 500 50 730 3648 1362 422 400 241 400
KS-CLRG-5006 150 730 10945 4085 522 400 241 479
KS-CLRG-50012 300 730 21890 8171 672 400 241 598
KS-CLRG-6002 600 50 856 4282 1488 433 430 266 475
KS-CLRG-6006 150 856 12845 4465 533 430 266 568
KS-CLRG-60012 300 856 25690 8931 683 430 266 707
KS-CLRG-8002 800 50 1217 6087 2128 538 510 317 836
KS-CLRG-8006 150 1217 18260 6385 638 510 317 966
KS-CLRG-80012 300 1217 36521 12769 788 510 317 1160
KS-CLRG-10002 1000 50 1464 7322 2705 565 560 343 1055
KS-CLRG-10006 150 1464 21966 8114 665 560 343 1210
KS-CLRG-100012 300 1464 43932 16227 815 560 343 1442
