Double Acting Hydraulic Cylinder Jack

Collar threads, plunger threads and base mounting holes for easy fixturing
Baked enamel finish for increased corrosion resistance.
Removable hardened saddles protect plunger during lifting and pressing.
Built-in safety valve prevents accidental over-pressurization.
3/8 "- 18NPT coupler and dust cap included on all models.

  • KS-RR

  • KASHON

Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

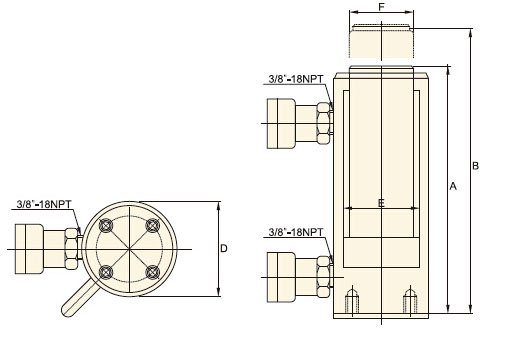

syt (1)

Model Capacity Max. Working Pressure Stroke Max. Capacity Effective Area Oil Capacity Extended Height B Outside Diameter D Weight
push pull push pull push pull
T Bar mm kN cm2 cm3 mm mm kg
KS-RR-1010 10 700 254 101 33 14,5 4,8 368 122 663 73 12
KS-RR-1012 305 101 33 14,5 4,8 442 147 762 73 14
KS-RR-308 30 209 295 53 42,1 19,1 879 400 604 101 18
KS-RR-3014 368 295 53 42,1 19,1 1549 703 917 101 29
KS-RR-506 50 156 498 103 71,2 21,5 1111 335 487 127 30
KS-RR-5013 334 498 103 71,2 21,5 2378 718 843 127 52
KS-RR-5020 511 498 103 71,2 21,5 3638 1099 1244 127 68
KS-RR-756 75 156 718 156 102,6 31,4 1601 490 503 146 41
KS-RR-7513 333 718 156 102,6 31,4 3417 1046 858 146 68
KS-RR-1006 95 168 933 435 133,3 62,2 2238 1045 525 177 61
KS-RR-10013 333 933 435 133,3 62,2 4439 2071 857 177 93
KS-RR-10018 460 933 435 133,3 62,2 6132 2861 1147 177 117
KS-RR-1502 140 57 1386 668 198,1 95,4 1129 544 253 203 49
KS-RR-1506 156 1386 668 198,1 95,4 3090 1488 541 203 93
KS-RR-15013 333 1386 668 198,1 95,4 6597 3177 915 203 124
KS-RR-15032 815 1386 668 198,1 95,4 16145 7775 1931 203 238
KS-RR-2006 200 152 1995 1017 285,0 145,3 4332 2209 582 247 147
KS-RR-20013 330 1995 1017 285,0 145,3 9405 4795 938 247 199
KS-RR-20018 457 1995 1017 285,0 145,3 13025 6640 1222 247 204
KS-RR-20024 610 1995 1017 285,0 145,3 17385 8863 1527 247 279
KS-RR-20036 914 1995 1017 285,0 145,3 26049 13280 2136 247 383
KS-RR-20048 1219 1995 1017 285,0 145,3 34741 17712 2746 247 483
KS-RR-3006 325 153 3201 1703 457,3 243,2 6997 3721 638 311 200
KS-RR-30012 305 3201 1703 457,3 243,2 13947 7418 943 311 312
KS-RR-30018 457 3201 1703 457,3 243,2 20889 11114 1247 311 385
KS-RR-30024 609 3201 1703 457,3 243,2 27850 14811 1552 311 469
KS-RR-30036 915 3201 1703 457,3 243,2 41843 22253 2162 311 628
KS-RR-30048 1219 3201 1703 457,3 243,2 55745 29646 2771 311 780
KS-RR-4006 440 152 4292 2297 613,1 328,1 9319 4987 690 358 303
KS-RR-40012 305 4292 2297 613,1 328,1 18700 10007 995 358 399
KS-RR-40018 457 4292 2297 613,1 328,1 28018 14995 1300 358 453
KS-RR-40024 610 4292 2292 613,1 328,1 37400 20014 1605 358 597
KS-RR-40036 914 4292 2292 613,1 328,1 56037 29988 2214 358 792
KS-RR-40048 1219 4292 2292 613,1 328,1 74737 39996 2824 358 980
KS-RR-5006 520 153 5108 2838 729,7 405,4 11164 6203 730 397 432
KS-RR-50012 305 5108 2838 729,7 405,4 22256 12365 1035 397 589
KS-RR-50018 457 5108 2838 729,7 405,4 33347 18526 1339 397 680
KS-RR-50024 609 5108 2838 729,7 405,4 44440 24689 1644 397 816
KS-RR-50036 925 5108 2838 729,7 405,4 66768 36973 2254 397 1002
KS-RR-50048 1219 5108 2838 729,7 405,4 88951 49418 2863 397 1224
