General purpose single acting hydraulic cylinder jack

General purpose single acting hydraulic cylinder jack

Single acting, heavy-duty return springs
High strength alloy steel for durability
Plated steel plungers
Stop ring to prevent the plunger over stroke, the piston top standard antiskid saddle
Collar threads, plunger threads and base mounting holes enable easy fixturing
Baked enamel finish for increased corrosion resistance
Removable strap handles for unobstructed fixturing
Plunger wiper reduces contamination, extending cylinder life
3/8 "- 18NPT coupler and dust cap included on all models.

Model:
KS-RC
Brand:
KASHON

Quantity:




Inquire Add to Basket

Parameters

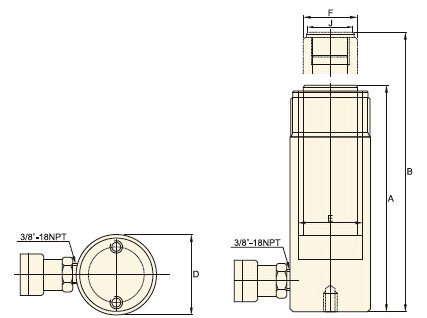

Model	Capacity	Max. Working Pressure	Closed Height A	Stroke	Effective Area	Oil Capacity	Extended Height B	Outside Diameter D	Saddle Diameter J	Weight
Model	(T)	(bar)	(mm)	(mm)	(cm2)	(cm3)	(mm)	(mm)	(mm)	(kg)
KS-RC-51	5	700	110	25	6.5	16	135	38	25	1.0
KS-RC-53			165	76		50	241			1.5
KS-RC-55			215	127		83	342			1.9
KS-RC-57			273	177		115	450			2.4
KS-RC-59			323	232		151	555			2.8
KS-RC-101	10	700	89	26	14.5	38	115	57	–	1.8
KS-RC-102			121	54		78	175		35	2.3
KS-RC-104			171	105		152	276			3.3
KS-RC-106			247	156		226	403			4.4
KS-RC-108			298	203		294	501			5.4
KS-RC-1010			349	257		373	606			6.4
KS-RC-1012			400	304		441	704			6.8
KS-RC-1014			450	356		516	806			8.2
KS-RC-151	15	700	124	25	20.3	51	149	69	38	3.3
KS-RC-152			149	51		104	200			4.1
KS-RC-154			200	101		205	301			5.0
KS-RC-156			271	152		308	423			6.8
KS-RC-158			322	203		411	525			8.2
KS-RC-1510			373	254		516	627			9.5
KS-RC-1512			423	305		619	728			10.9
FY-RC-1514			474	356		723	830			11.8
KS-RC-251	25	700	139	26	33.2	86	165	85	50	5.9
KS-RC-252			165	50		166	215			6.4
KS-RC-254			215	102		339	317			8.2
KS-RC-256			273	158		525	431			10.0
KS-RC-258			323	210		697	533			12.2
KS-RC-2510			374	261		867	635			14.1
KS-RC-2512			425	311		1033	736			16.3
FY-RC-2514			476	362		1202	838			17.7
KS-RC-308	30	700	387	209	42.1	880	596	101	50	18.1
KS-RC-502	50	700	176	51	71.2	362	227	127	71	15.0
KS-RC-504			227	101		719	328			19.1
KS-RC-506			282	159		1131	441			23.1
KS-RC-5013			460	337		2399	797			37.6
KS-RC-756	75	700	285	156	102.6	1601	441	146	71	29.5
KS-RC-7513	75	700	492	333	102.6	3417	825	146	71	59.0
KS-RC-1006	100	700	357	168	133.3	2239	525	177	71	59.0
KS-RC-10010	100	700	449	260	133.3	3466	709	177	71	72.6
