Hand Torque Multiplier

Hand Torque Multiplier suitable for the occasions where it requests for high torque but power supply or
space is limited.
Torque increasing system of precise planetary gears, compact structure, Strong and durable,
Easy maintenance, accuracy: ±5%
All Hand Torque Multiplier models are equipped with anti-returning device, to improve operation convenience and security
High torque/weight ratio, Hand Torque Multiplier assisted with manual torque wrench, to easily realize precise assembly of bolts/nuts.
Easily switch clockwise to anti-clockwise direction by the reversing bar and buttons.

Model:
KS
Brand:
KASHON

Quantity:



Inquire Add to Basket

Parameters

Model	KS-10W	KS-20W	KS-35W	KS-55W	KS-75W
Max. Torque Output (N.m)	1000	2000	3500	5500	7500
Input Square Drive	1/2”	1/2”	1/2”	1/2”	1/2”
Output Square Drive(B)	1”	1”	1”	1 1/2”	1 1/2”
Torque Ratio	1:4	1:13.7	1:17	1:21	1:22.8
D (mm)	82	82	98	115	127
H(mm)	88	93.5	106	125.5	135
h (mm)	49	76	94	107	107
Approx. Weight (kg)	2.3	3.3	5.9	9.7	13

Model KS-20W/KS-35W/KS-55W/KS-75W also can assemble
with horizontal plate reaction arm like following:

Please feel free to contact us if you need this type, thanks!

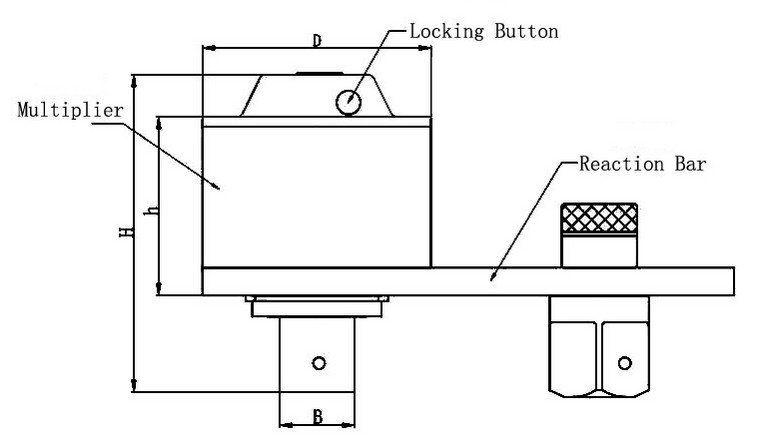

KS-F series hand torque multiplier(reaction arm horizontal plate type):

Model	KS-100F	KS-150F	KS-200F
Max. Torque Output (N.m)	10000	15000	20000
Input Square Drive	1/2”	3/4”	3/4”
Output Square Drive(B)	1 1/2”	2 1/2”	2 1/2”
Torque Ratio	1:29	1:61.2	1:67
D (mm)	141	156	170
H(mm)	130	300	330
h (mm)	115	246	264
Approx. Weight (kg)	16	30	40
