Hydraulic Flange Spreader

Maximum spread can reach 80mm;
The stepped blocks radius is 150mm,
The stepped blocks with forged alloy steel material, have longer life;
Lightweight reinforced plastic steel handle design, convenient to carry;
Unique interlocking structure, makes the spreader close to flange and avoid over spread when it is opened; and the hydraulic cylinder is automatic return when it is closed.
  • FSH-14

  • KASHON

Quantity:
sharethis sharing button

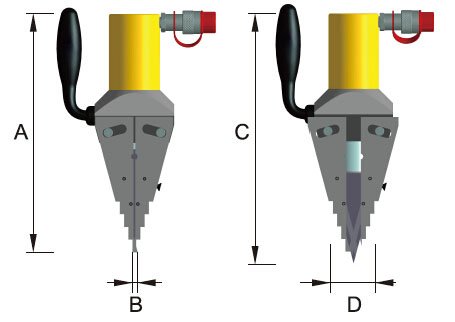

FSH-14 drawing


Model Capacity
(T)
Dimensions (mm) Weight
(kg)
Remarks
A B C D
FSH-14 14 290 6 328 81 9 1×hydraulic flange spreader, 1×stepped block, 1×block, 1×hose, 1×hydraulic hand pump, 1×portable aluminum alloy tool box
FSH-28 2×14 290 6 328 81 18 2× hydraulic flange spreaders, 2×stepped blocks, 2×blocks, 3×hoses, 1×hydraulic hand pump, 1×one-to-two distributing valve, 1×portable aluminum alloy tool box
