Single Acting High Tonnage Hydraulic Cylinder Jack

Single acting, load return
Integral stop ring provides piston blow-out protection
Special bearing design withstands side-loads up to 10% of the rated load
Plunger wiper reduces contamination, extending cylinder life
Standard rigid deep groove saddle, can choose a 5 degree tilt saddle to adapt to component unevenly situation
Single acting design applys to working conditions of need connected common force
Single acting design does not apply to horizontal working conditions
3/8 "- 18NPT coupler and dust cap included on all models.
  • KS-CLSG

  • KASHON

Quantity:
sharethis sharing button

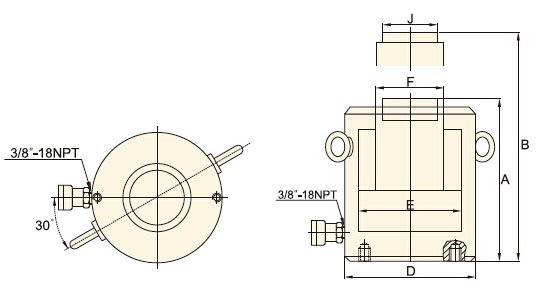

syt

Model Capacity Max. Working Pressure Closed Height A Stroke Effective Area Oil Capacity Outside Diameter D Plunger Diameter F Saddle Diameter J Weight
(T) (Bar) (mm) (mm) (cm2) (cm3) (mm) (mm) (mm) (kg)
KS-CLSG-502 50 700 166 50 76.1 380 130 70 50 15
KS-CLSG-504 216 100 76.1 761 130 70 50 19
KS-CLSG-506 266 150 76.1 1141 130 70 50 23
KS-CLSG-508 316 200 76.1 1522 130 70 50 27
KS-CLSG-5010 366 250 76.1 1902 130 70 50 31
KS-CLSG-5012 416 300 76.1 2283 130 70 50 35
KS-CLSG-1002 100 700 183 50 133 665 165 95 75 28
KS-CLSG-1004 233 100 133 1331 165 95 75 34
KS-CLSG-1006 283 150 133 1996 165 95 75 40
KS-CLSG-1008 333 200 133 2662 165 95 75 46
KS-CLSG-10010 383 250 133 3327 165 95 75 53
KS-CLSG-10012 433 300 133 3993 165 95 75 59
KS-CLSG-1502 150 700 200 50 198 990 205 114 94 47
KS-CLSG-1504 250 100 198 1979 205 114 94 57
KS-CLSG-1506 300 150 198 2969 205 114 94 67
KS-CLSG-1508 350 200 198 3959 205 114 94 76
KS-CLSG-15010 400 250 198 4948 205 114 94 86
KS-CLSG-15012 450 300 198 5938 205 114 94 95
KS-CLSG-2002 200 700 218 50 266 1332 235 133 113 69
KS-CLSG-2006 318 150 266 3995 235 133 113 94
KS-CLSG-20012 468 300 266 7990 235 133 113 131
KS-CLSG-2502 250 700 275 50 366 1830 275 165 145 120
KS-CLSG-2506 375 150 366 5491 275 165 145 156
KS-CLSG-25012 525 300 366 10983 275 165 145 210
KS-CLSG-3002 300 700 322 50 457 2287 310 171 150 179
KS-CLSG-3006 422 150 457 6860 310 171 150 223
KS-CLSG-30012 572 300 457 13719 310 171 150 287
KS-CLSG-4002 400 700 374 50 613 3066 365 190 170 290
KS-CLSG-4006 474 150 613 9197 365 190 170 349
KS-CLSG-40012 624 300 613 18393 365 190 170 437
KS-CLSG-5002 500 700 422 50 730 3648 400 241 218 400
FY-CLSG-5006 522 150 730 10945 400 241 218 479
FY-CLSG-50012 672 300 730 21890 400 241 218 598
FY-CLSG-6002 600 700 433 50 856 4282 430 266 228 475
FY-CLSG-6006 533 150 856 12845 430 266 228 568
FY-CLSG-60012 683 300 856 25690 430 266 228 707
FY-CLSG-8002 800 700 538 50 1217 6087 510 317 297 836
FY-CLSG-8006 638 150 1217 18260 510 317 297 966
FY-CLSG-80012 788 300 1217 36521 510 317 297 1160
FY-CLSG-10002 1000 700 565 50 1464 7322 560 343 299 1055
FY-CLSG-10006 665 150 1464 21966 560 343 299 1210
FY-CLSG-100012 815 300 1464 43932 560 343 299 1442
