Single Acting hollow plunger hydraulic cylinder jack

Single Acting hollow plunger hydraulic cylinder jack

Single-acting, spring return
Baked enamel finish for increased corrosion resistance
Hollow plunger design allows for both pull and push forces
Collar threads for easy fixturing
Plunger wiper reduces contamination, extending cylinder life
3/8 "- 18NPT coupler and dust cap included on all models.

Model:
KS-RCH
Brand:
KASHON

Quantity:




Inquire Add to Basket

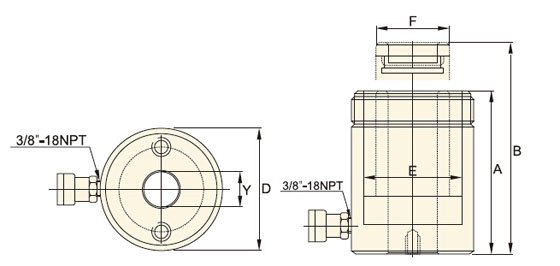

Parameters

Model	Capacity	Max. Working Pressure	Closed Height A	Stroke	Effective Area	Center Hole Diameter Y	Oil Capacity	Outside Diameter D	Plunger Diameter Plunger Diameter F	Weight
Model	(T)	(bar)	(mm)	(mm)	(cm2)	(mm)	(cm3)	(mm)	(mm)	(kg)
KS-RCH-120	13	700	55	8	17.9	19.6	14	69	35.1	1.5
KS-RCH-121			120	42	17.9		75			2.8
KS-RCH-123			184	76	17.9		136			4.4
KS-RCH-202	20	700	162	49	30.7	26.9	150	98	54.1	7.7
KS-RCH-206	20	700	306	155	30.7	26.9	476	98	54.1	14.1
KS-RCH-302	30	700	178	64	46.6	33.3	298	114	63.5	10.9
KS-RCH-306	30	700	330	155	46.6	33.3	722	114	63.5	21.8
KS-RCH-603	60	700	247	76	82.3	53.8	626	159	91.9	28.1
KS-RCH-606	60	700	323	153	82.3	53.8	1259	159	91.9	35.4
KS-RCH-1003	100	700	254	76	133.0	79.0	1011	212	127.0	63.0
