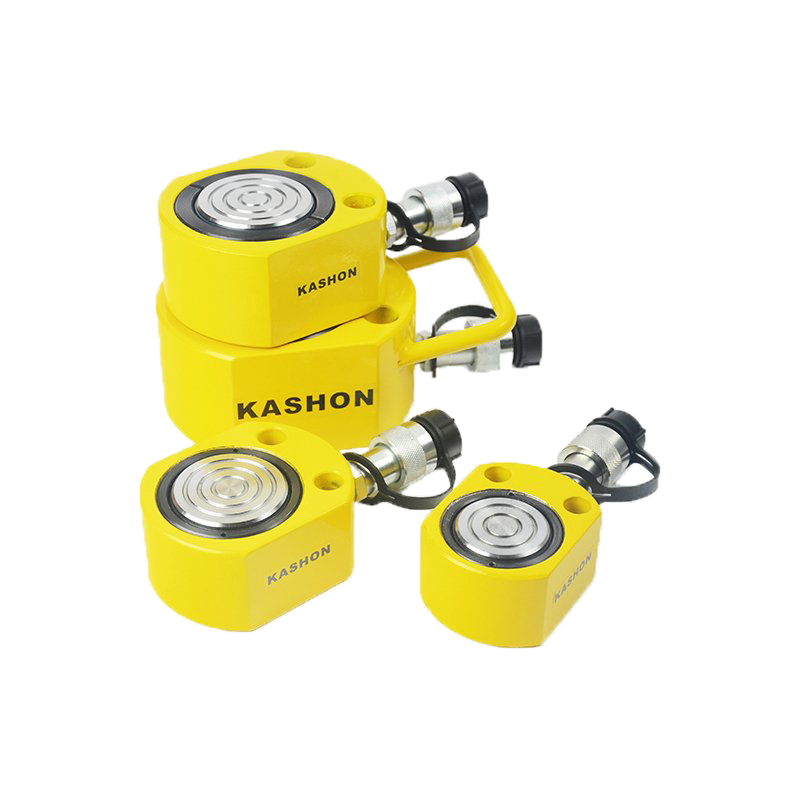

KSRSM
KASHON
| Quantity: | |
|---|---|

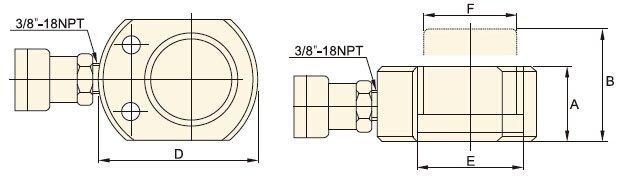

| Model | Capacity | Max. Working Pressure | Closed Height A | Stroke | Effective Area | Oil Capacity | Extended Height B | Outside Diameter D | Bore Diameter E | Plunger Diameter F | Weight |
| (T) | (bar) | (mm) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (kg) | |
| KSRSM-50 | 5 | 700 | 32 | 6 | 6.5 | 4 | 38 | 58X41 | 28.7 | 25.4 | 1.0 |
| KSRSM-100 | 10 | 700 | 42 | 12 | 14.5 | 18 | 54 | 82X55 | 42.9 | 38.1 | 1.4 |
| KSRSM-200 | 20 | 700 | 51 | 11 | 28.7 | 32 | 62 | 101X76 | 60.5 | 50.8 | 3.1 |
| KSRSM-300 | 30 | 700 | 58 | 13 | 42.1 | 55 | 71 | 117X95 | 73.2 | 63.4 | 4.5 |
| KSRSM-500 | 45 | 700 | 66 | 16 | 62.1 | 99 | 82 | 140X114 | 88.9 | 69.8 | 6.8 |
| KSRSM-750 | 75 | 700 | 79 | 16 | 102.6 | 164 | 95 | 165X139 | 114.3 | 82.6 | 11.3 |
| KSRSM-1000 | 90 | 700 | 85 | 16 | 126.7 | 203 | 101 | 178X153 | 127.0 | 92.2 | 14.5 |
| KSRSM-1500 | 150 | 700 | 100 | 16 | 198.1 | 317 | 116 | 215X190 | 158.8 | 114.3 | 26.3 |
| Model | Capacity | Max. Working Pressure | Closed Height A | Stroke | Effective Area | Oil Capacity | Extended Height B | Outside Diameter D | Bore Diameter E | Plunger Diameter F | Weight |
| (T) | (bar) | (mm) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (kg) | |
| KSRSM-50 | 5 | 700 | 32 | 6 | 6.5 | 4 | 38 | 58X41 | 28.7 | 25.4 | 1.0 |
| KSRSM-100 | 10 | 700 | 42 | 12 | 14.5 | 18 | 54 | 82X55 | 42.9 | 38.1 | 1.4 |
| KSRSM-200 | 20 | 700 | 51 | 11 | 28.7 | 32 | 62 | 101X76 | 60.5 | 50.8 | 3.1 |
| KSRSM-300 | 30 | 700 | 58 | 13 | 42.1 | 55 | 71 | 117X95 | 73.2 | 63.4 | 4.5 |
| KSRSM-500 | 45 | 700 | 66 | 16 | 62.1 | 99 | 82 | 140X114 | 88.9 | 69.8 | 6.8 |
| KSRSM-750 | 75 | 700 | 79 | 16 | 102.6 | 164 | 95 | 165X139 | 114.3 | 82.6 | 11.3 |
| KSRSM-1000 | 90 | 700 | 85 | 16 | 126.7 | 203 | 101 | 178X153 | 127.0 | 92.2 | 14.5 |
| KSRSM-1500 | 150 | 700 | 100 | 16 | 198.1 | 317 | 116 | 215X190 | 158.8 | 114.3 | 26.3 |
