Bolting Tools

Square drive socket

It's raw material is Senior Chromium–Molybdenum alloy steel.
The sockets are made under Germany DIN standard (3121&3129).
It adopts standard heat–treatment and ensures life–long warranty.

Model: KS
Brand: KASHON

Quantity:



Inquire Add to Basket

Parameters

3⁄4 " Square Hole (1MXTA)

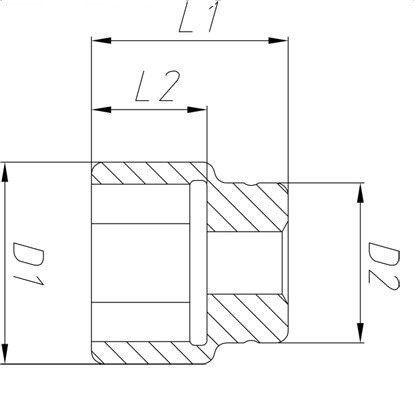

Model	bolt size M	Nut size (mm)	L1	L2	D1	D2
KS-S24	M16	24	54	32	40	40
KS-S27	M18	27	54	32	42	42
KS-S30	M20	30	54	33	46	44
KS-S34	M22	34	54	32	48	44
KS-S36	M24	36	57	32	53	44
KS-S41	M27	41	58	33	60	44
KS-S46	M30	46	63	36	66	44
KS-S50	M33	50	65	40	71	44
KS-S55	M36	55	70	45	77	54

1"Square Hole ( 3MXTA)

Model	bolt size M	Nut size (mm)	L1	L2	D1	D2
KS-S34	M22	34	59	32	58	58
KS-S36	M24	36	62	32	59	59
KS-S41	M27	41	65	38	67	54
KS-S46	M30	46	65	38	74	54
KS-S50	M33	50	70	43	79	60
KS-S55	M36	55	80	52	84	60
KS-S60	M39	60	85	57	89	60
KS-S65	M42	65	85	58	98	70
KS-S70	M45	70	90	62	104	70
KS-S75	M48	7	95	65	108	70

1 −1⁄2" Square Hole (5,8,10MXTA)

Model	bolt size M	Nut size (mm)	L1	L2	D1	D2
KS-S27	M27	41	85	44	74	74
KS-S46	M30	46	85	44	74	74
KS-S50	M33	50	90	45	79	79
KS-S55	M36	55	90	45	84	84
KS-S60	M39	60	100	45	94	94
KS-S65	M42	65	100	45	98	80
KS-S70	M45	70	105	50	104	80
KS-S75	M48	75	110	50	118	85
KS-S80	M52	80	115	55	118	90
KS-S85	M56	85	125	60	128	90
KS-S90	M60	90	125	60	139	90
KS-S95	M64	95	130	65	139	90
KS-S100	M68	100	135	70	144	90
KS-S105	M72	105	135	70	149	90
KS-S110	M76	110	135	70	158	90
FY-S115	M80	115	135	70	159	90
KS-S120	M85	120	135	70	168	95
KS-S130	M90	130	155	93	189	95

2−1⁄2" Square Hole (15, 20, 25, 35,50 MXTA )

Model	bolt size M	Nut size (mm)	L1	L2	D1	D2
KS-S55	M33	55	100	57	86	114
KS-S60	M39	60	100	52	119	119
KS-S65	M42	65	100	52	119	119
KS-S70	M45	70	120	67	128	128
KS-S75	M48	75	120	67	128	128
KS-S80	M52	80	130	71	128	128
KS-S85	M56	85	130	71	128	129
KS-S90	M60	90	140	73	139	139
KS-S95	M64	95	140	73	139	139
KS-S100	M68	100	140	81	149	130
KS-S105	M72	105	150	89	149	130
KS-S110	M76	110	150	90	158	130
KS-S115	M80	115	150	98	168	130
KS-S120	M85	120	150	98	178	130
KS-S130	M90	130	170	98	188	130
KS-S135	M95	135	170	114	198	130
KS-S145	M100	145	170	122	210	152
KS-S150	M105	150	190	140	216	152
KS-S155	M110	155	190	140	229	152
KS-S165	M115	165	190	140	241	152
