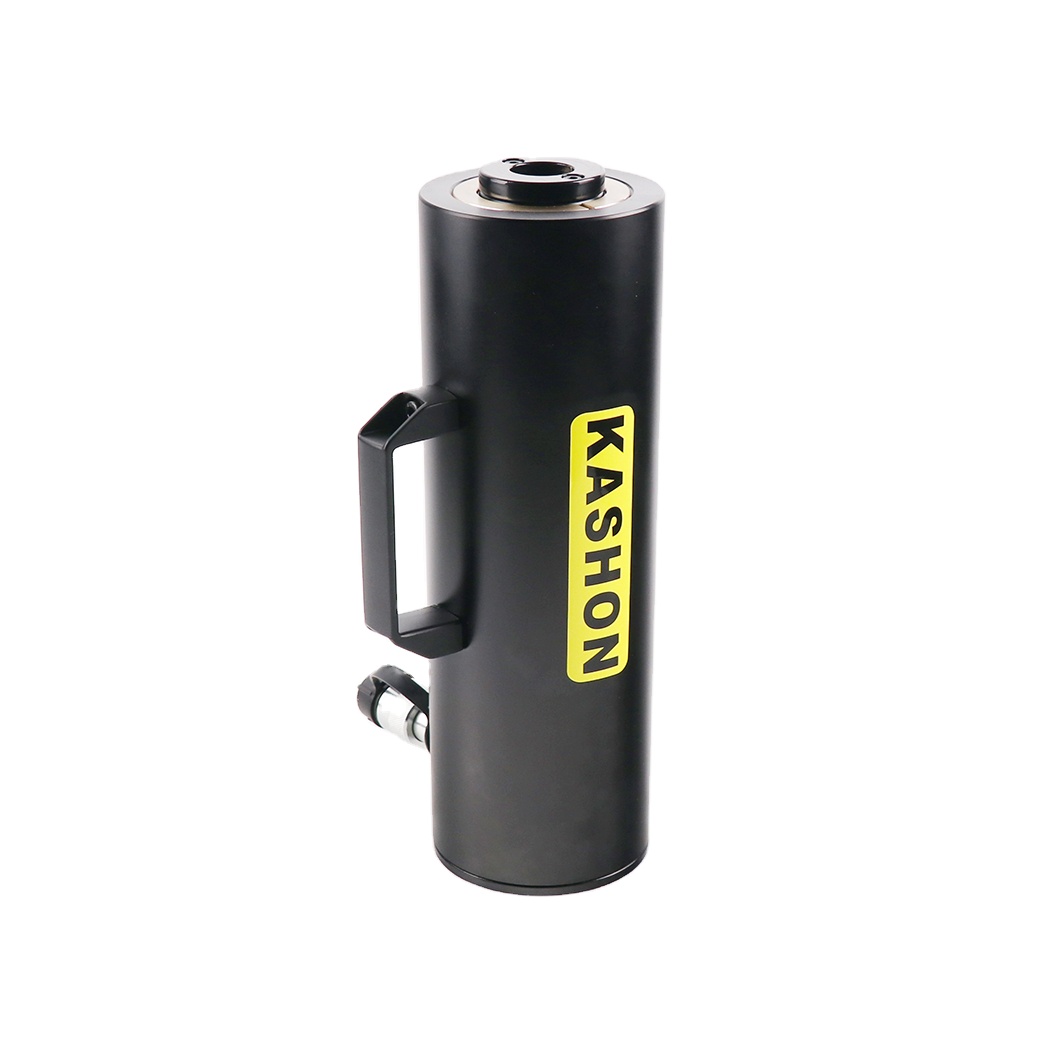

Aluminum hollow plunger hydraulic cylinder jack

Aluminum hollow plunger hydraulic cylinder jack

Hollow plunger design allows for both pull and push forces
Composite bearings increase cylinder life and side load resistance
Hard coat finish on all surfaces resists damage and extends cylinder life
Handles included on all models
Floating center tube increases seal life
Steel baseplate and saddle for protection against load-induced damage
Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
High-strength return spring for rapid cylinder retraction
CR-400 coupler and dustcap included on all models

Model:
KSRACH
Brand:
KASHON

Quantity:




Inquire Add to Basket

Parameters

Model Number	Maximum Operating Pressure (bar)	Capacity Class (tonnage)	Stroke (mm)	Collapsed Height (mm)	Cylinder Effective Area Advance (cm2)	Center hole diameter (mm)	Oil Capacity Advance (cm3)	Weight (kg)
KSRACH202	700	20	50	188	32,7	27	164	5,2
KSRACH204	700	20	100	251	32,7	27	327	6,1
KSRACH206	700	20	150	315	32,7	27	491	7,1
KSRACH208	700	20	200	378	32,7	27	654	8,0
KSRACH2010	700	20	250	442	32,7	27	818	9,0
KSRACH302	700	30	50	208	51,1	34	256	8,0
KSRACH304	700	30	100	267	51,1	34	511	9,5
KSRACH306	700	30	150	333	51,1	34	766	11,2
KSRACH308	700	30	200	395	51,1	34	1022	12,9
KSRACH3010	700	30	250	458	51,1	34	1277	14,5
KSRACH602	700	60	50	251	84,7	34	423	16,2
KSRACH604	700	60	100	315	84,7	54	847	19,5
KSRACH606	700	60	150	380	84,7	54	1270	25,6
KSRACH608	700	60	200	445	84,7	54	1694	26,0
KSRACH6010	700	60	250	510	84,7	54	2117	29,6
KSRACH1002	700	100	50	258	164,6	79	823	33,8
KSRACH1004	700	100	100	325	164,6	79	1646	39,8
KSRACH1006	700	100	150	391	164,6	79	2487	46,2
KSRACH1008	700	100	200	459	164,6	79	3291	52,2
KSRACH10010	700	100	250	527	164,6	79	4114	58,8
