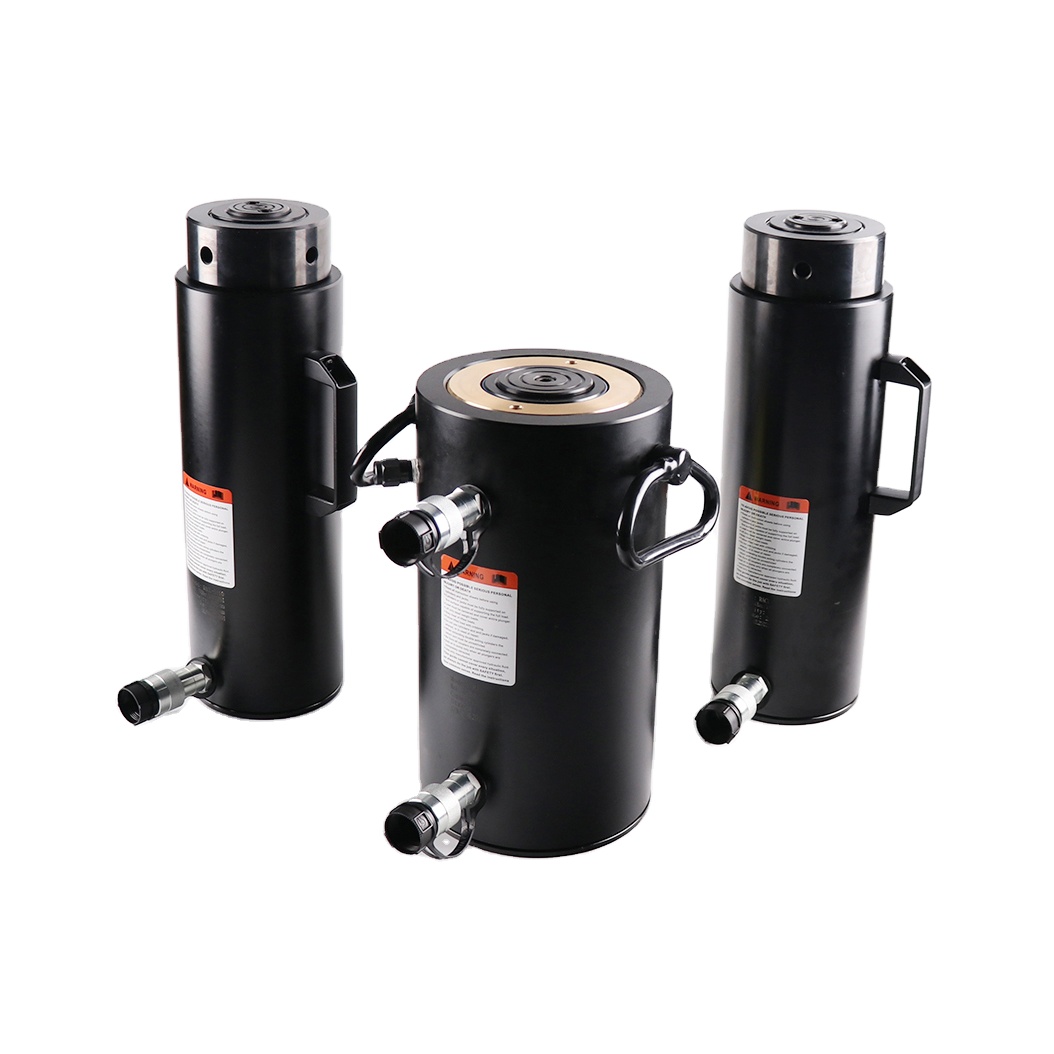

Aluminum lock nut hydraulic cylinder

Aluminum Lock Nut provides mechanical load holding for extended periods
Hardened steel stop ring increases cylinder life and resistance to side-loads of up to 5%
Hard coat finish on all surfaces resists damage and extends cylinder life
Composite bearings increase cylinder life and side load resistance
Handles included on all models
Steel base plate and saddle for protection against load-induced damage
Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
High-strength return spring for rapid cylinder retraction
CR-400 coupler and dustcap included on all models
  • KSRACL

  • KASHON

Quantity:
sharethis sharing button
specs
Model Number Maximum Operating Pressure (bar) Capacity Class (ton) Stroke (mm) Collapsed Height
A (mm)
Extended Height
B (mm)
Plunger Type Material Cylinder Effective Area Advance (cm2) Oil Capacity Advance (cm3) Surface Treatment Weight (kg)
KSRACL202 700 20 50 224 274 Solid Aluminum 31,2 156 Anodized 4,0
KSRACL204 700 20 100 274 374 Solid Aluminum 31,2 312 Anodized 4,6
KSRACL206 700 20 150 324 474 Solid Aluminum 31,2 468 Anodized 5,2
KSRACL208 700 20 200 374 574 Solid Aluminum 31,2 624 Anodized 5,8
KSRACL2010 700 20 250 424 674 Solid Aluminum 31,2 780 Anodized 6,4
KSRACL302 700 30 50 231 281 Solid Aluminum 44,2 221 Anodized 5,4
KSRACL304 700 30 100 281 381 Solid Aluminum 44,2 442 Anodized 6,1
KSRACL306 700 30 150 331 481 Solid Aluminum 44,2 663 Anodized 6,8
KSRACL308 700 30 200 381 581 Solid Aluminum 44,2 883 Anodized 7,5
KSRACL3010 700 30 250 431 681 Solid Aluminum 44,2 1105 Anodized 8,2
KSRACL502 700 50 50 236 286 Solid Aluminum 70,9 354 Anodized 9,3
KSRACL504 700 50 100 286 386 Solid Aluminum 70,9 709 Anodized 10,6
KSRACL506 700 50 150 336 486 Solid Aluminum 70,9 1063 Anodized 12,6
KSRACL508 700 50 200 386 586 Solid Aluminum 70,9 1417 Anodized 13,2
KSRACL5010 700 50 250 436 686 Solid Aluminum 70,9 1771 Anodized 14,5
KSRACL1002 700 100 50 296 346 Solid Aluminum 143,1 716 Anodized 21,9
KSRACL1004 700 100 100 346 446 Solid Aluminum 143,1 1431 Anodized 24,2
KSRACL1006 700 100 150 396 546 Solid Aluminum 143,1 2147 Anodized 26,5
KSRACL1008 700 100 200 446 646 Solid Aluminum 143,1 2863 Anodized 28,8
KSRACL10010 700 100 250 496 746 Solid Aluminum 143,1 3578 Anodized 31,1
KSRACL1502 700 150 50 323 373 Solid Aluminum 227,0 1135 Anodized 32,2
KSRACL1504 700 150 100 373 473 Solid Aluminum 227,0 2270 Anodized 36,2
KSRACL1506 700 150 150 423 573 Solid Aluminum 227,0 3405 Anodized 40,2
KSRACL1508 700 150 200 473 673 Solid Aluminum 227,0 4540 Anodized 44,2
KSRACL15010 700 150 250 523 773 Solid Aluminum 227,0 5675 Anodized 48,2
